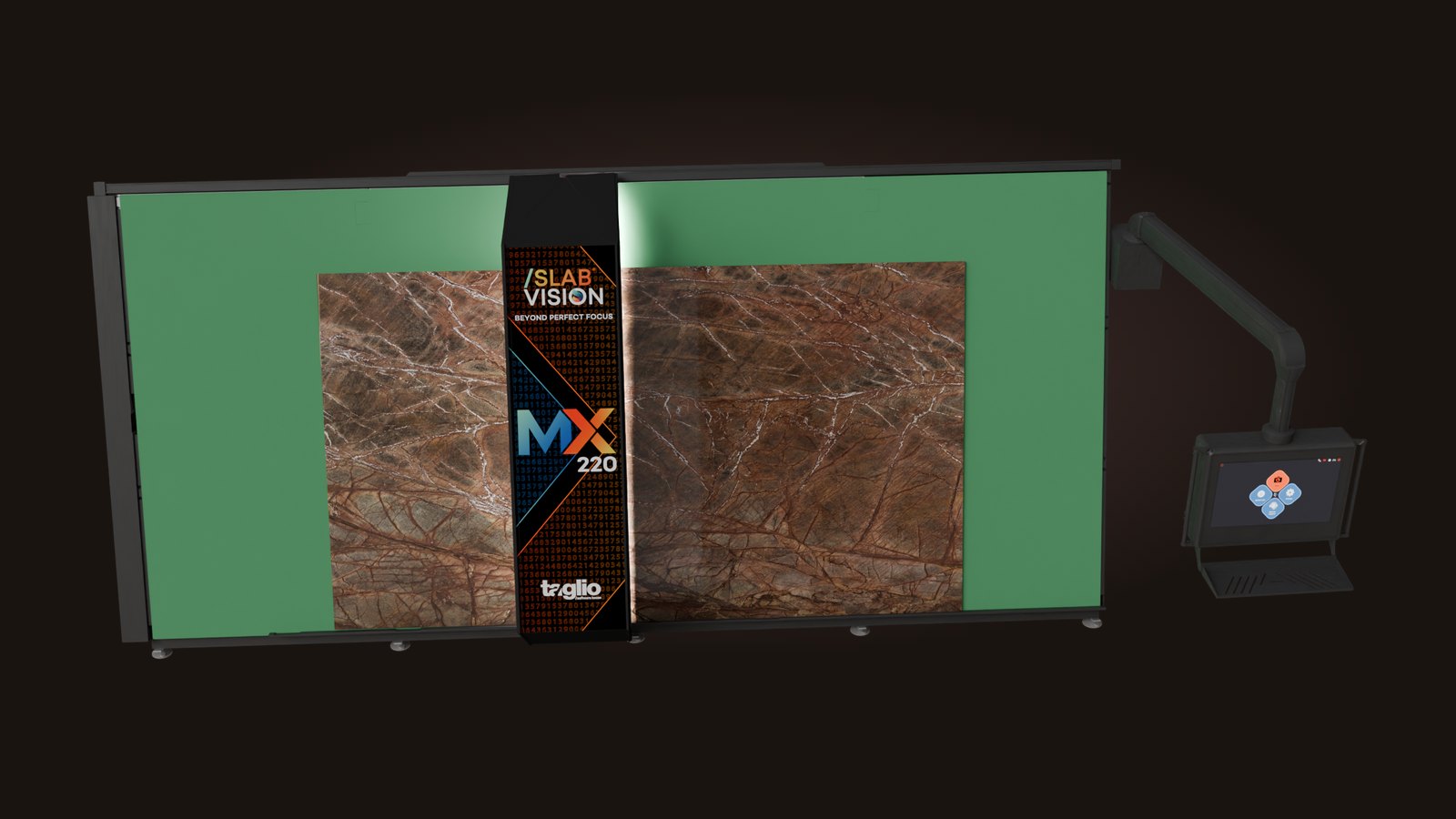

The next generation of vertical scanning systems for marble, granite and quartz slabs.
A matrix of high-resolution cameras, orchestrated to work as one. Every point on the slab is captured once, measured once, certified once.
The camera array behaves as a single virtual lens of extreme resolution: no seams, no perspective shifts, no compromises across the whole scanning area.
Developed in-house to make many sensors act as one: synchronized acquisition, continuous calibration and pixel-perfect alignment, frame after frame.
One acquisition, one certified dataset. The same data feeds measurements, rendering and quality control: every point detected with sub-millimetre precision.
Two cameras are two points of view. The MX matrix is one: the right one.
| Dual camera |  | |
|---|---|---|
| Accurate measurements | ? | ✓ |
| Consistent colour across the slab | ? | ✓ |
| One virtual camera, zero seams | ✕ | ✓ |
| True perspective on every point | ✕ | ✓ |
Drag the slider to compare the same marble detail: 128 MP against the 220 MP of the new scanner.
220 MP
Simulated comparison for illustration purposes.
Scanning is not an estimate: it is a measurement. The MX 220 locks onto thousands of reference points across the slab and certifies each one with sub-millimetre error, edge to edge.
More resolution and more speed, on the scanning area the industry already trusts.
Every vein, every crystal, every defect: a level of detail the stone industry has never seen.
Up to 15 m/min against the previous generation's 8, with the same footprint in your production line.
 | | |
|---|---|---|
| Maximum resolution | 128 MP | 220 MP+72% |
| Scanning speed | 8 m/min | 15 m/min≈ 2× faster |
| Geometric accuracy | < 1 mm per metre | < 1 mm per full slab |
| Scanning area | L 4000 × H 2200 mm | L 4000 × H 2200 mm now at 220 MP |
220 megapixels are worth little sitting in a folder. tInventory turns them into a warehouse you can search from your desk; tMatch turns them into layouts, client approvals and cut files ready for the saw.

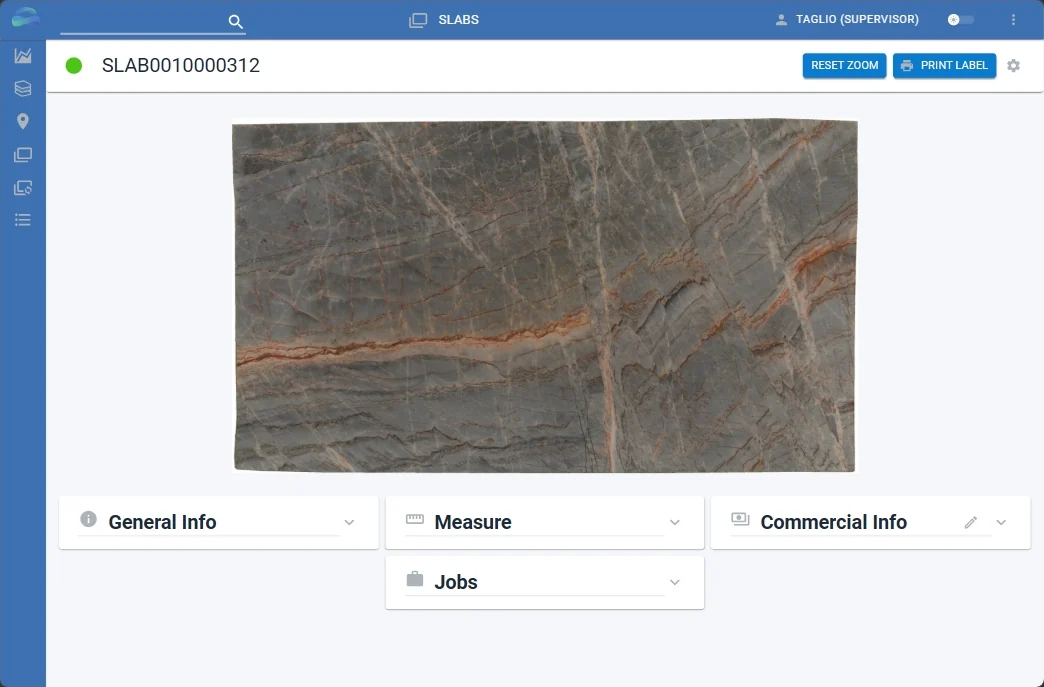

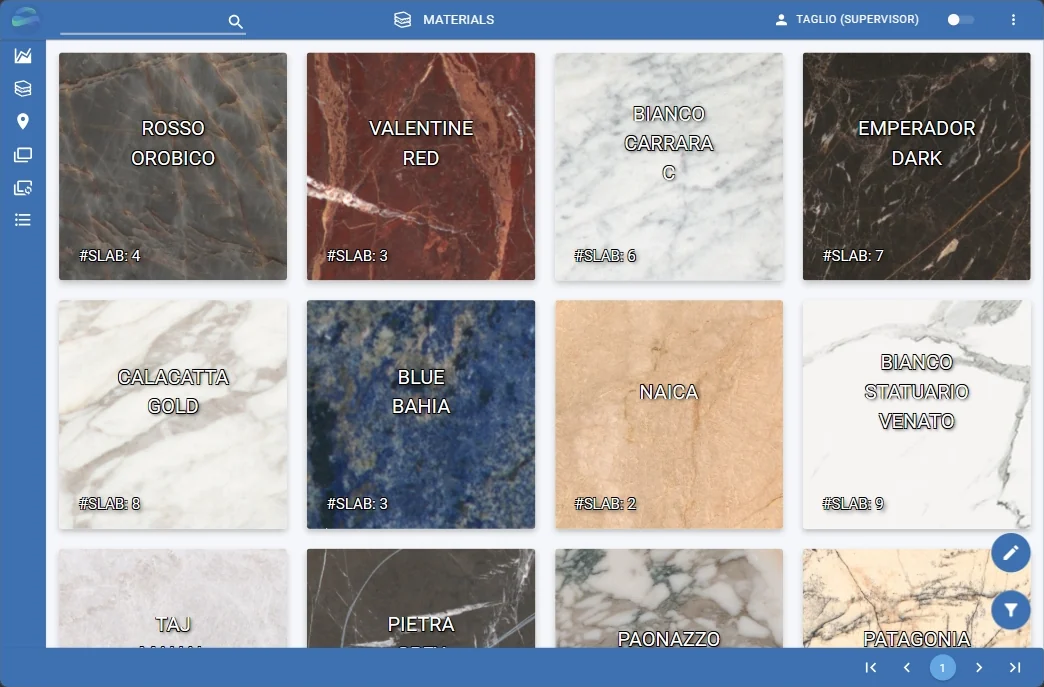

Your whole slab yard, digitized and searchable.

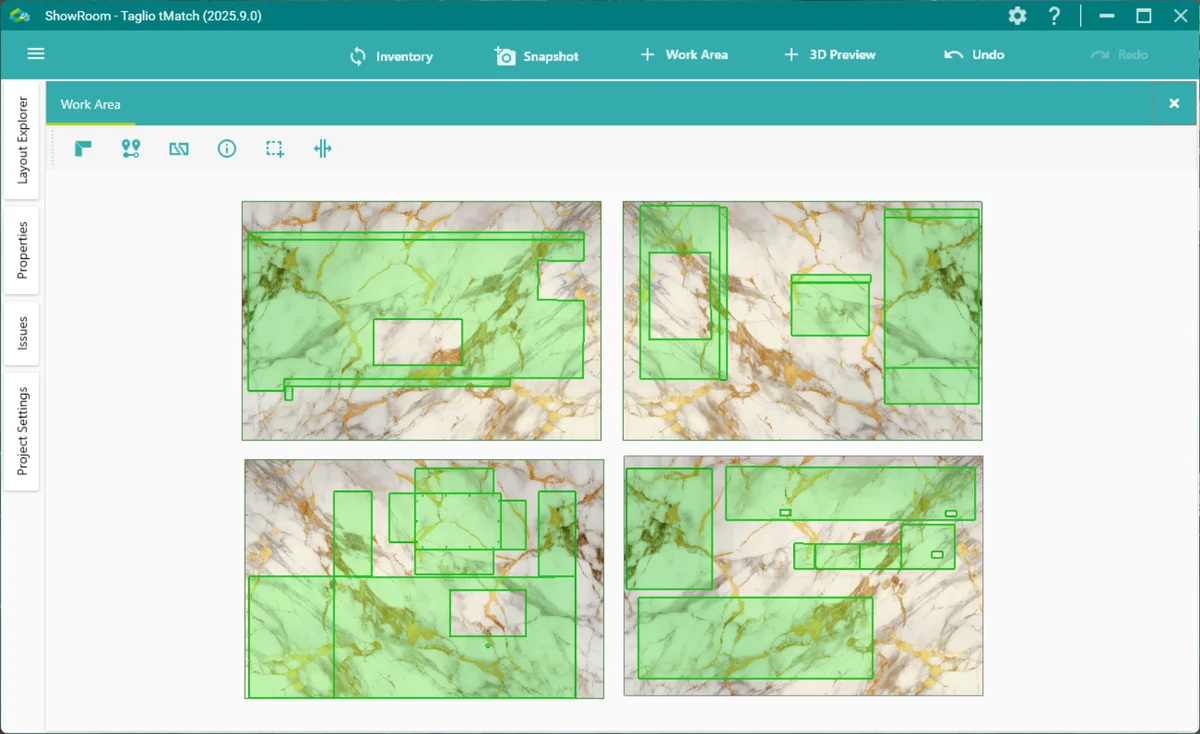

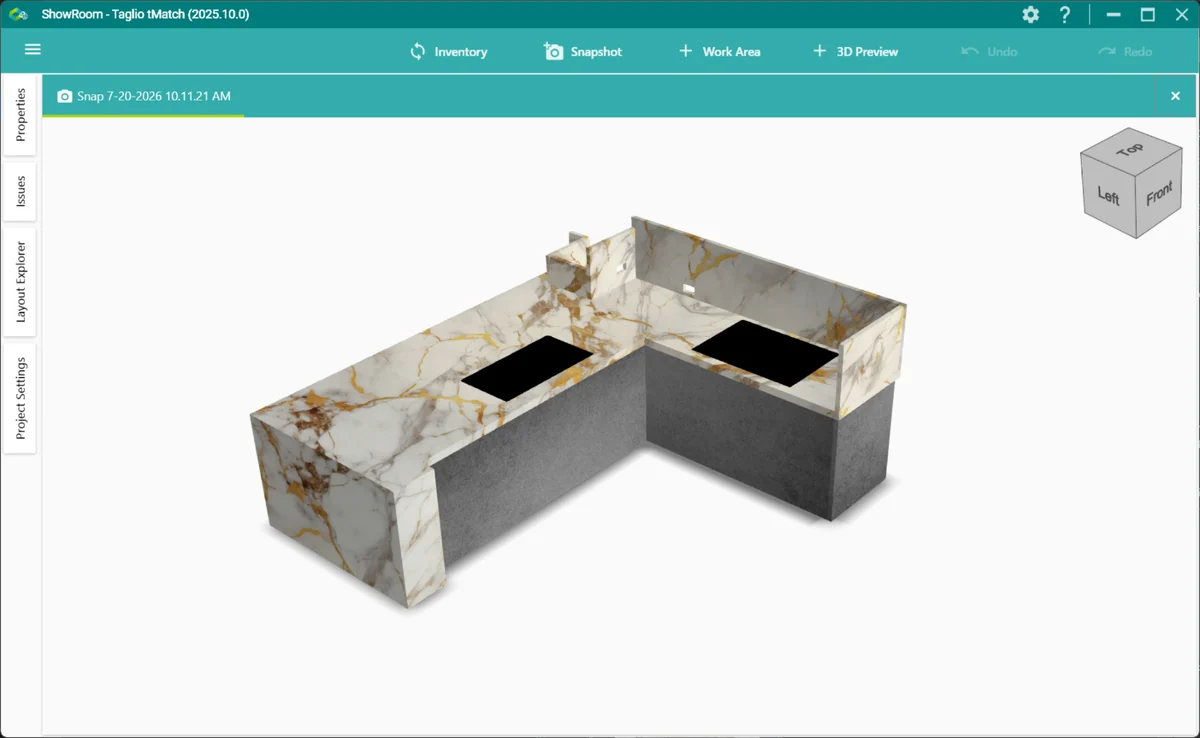

From slab to saw — layouts, approval and cut files.
Dimensions, power and what comes in the box — so you know what it takes to put one on your floor.
| Max slab size | 2.2 × 4.0 m · 5 cm86 × 157 in · 1.96 in |
|---|---|
| Scanner size | H 2350 × W 1800 × L 5100 mmH 93 × W 70 × L 200 in |
| Weight | 1500 kg3300 lbs |
| Resolution | 220 Megapixel |
| Scanning speed | 15 m/min |
| Power | 2.0 kW220 V / 8 A · 120 V / 16 A · CSA, UL |
| Labels | Label printing, SlabInventory software |
Precision the category can't match.
Fast, secure slab loading via motorized pins.
Runs in a standard 20′ container — zero install.
Redesigned UI with built-in remote diagnostics.
Made in Italy, sealed against the elements.
Wider colour, brighter whites, deeper blacks.
Contact our sales team for a preview, pricing and availability of the new scanner.
